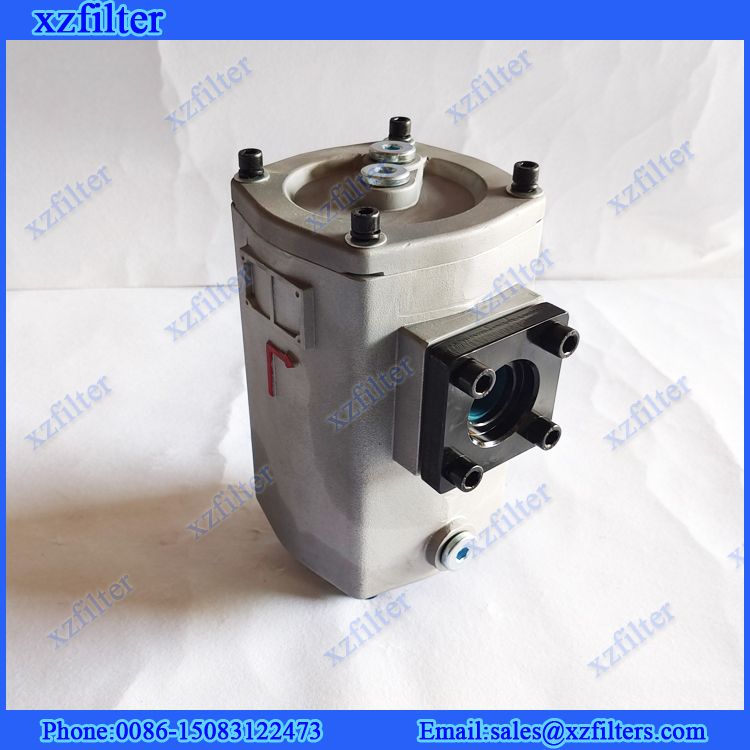

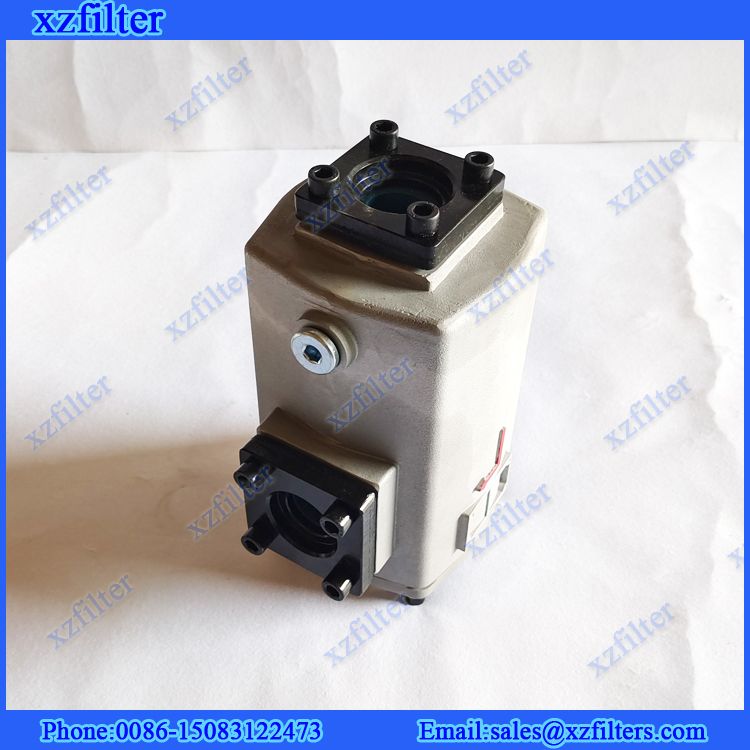

ISV Suction Line Filter Series  ISV40-160 ISV50-250 ISV65-400 ISV50-250X80 ISV50-250X100 ISV50-250X180 ISV80-630 ISV90-800 ISV100-1000 Introduction  The ISV series line suction filter is composed pf aluminium alloy bowl, element, by-pass valve and visual indicator and electrical indicator. It is light in weight and strong. This series filter has features as follows:a) Visual indicator:  when filter element is clogged by contaminants, the red signal of visual indicator will be risen slowly, the element should be changed or cleaned when the red signal rises to the top-position, push the restorer to allow the red signal ring downfall after changing or cleaning element.b) Electrical indicator: when filter element is clogged by contaminants, and the vacuum pressure reached -0.018MPa in filter outlet, the electrical indicator will act and indicate that the element should be changed or cleaned in that time.c) By-pass valve: when the vacuum pressure reaches -0.02MPa, the by-pass valve will automatically open to protect the pump safety.  Technical Data ModelFlow rateFilt.Dia.InitialIndicatorWeightModel of element(L/min)(μm)(mm)(MPa)(V)(A)(Kg)ISV20-40X*408020≤0.01122.55IX-40X*ISV25-63X*6310025242IX-63X*ISV32-100X*10018032361.56IX-100X*ISV40-160X*160402200.25IX-160X*ISV50-250X*250508.5IX-250X*ISV65-400X*4006511IX-400X*ISV80-630X*63080IX-630X*ISV90-800X*8009020IX-800X*ISV100-1000X*1000100IX-1000X* ModelHHlLhdld2d3d4PFDTtISV20-40×*16710067110φ85φ20φ27.5φ9φ7068112128ISV25-63×*φ25φ34.5ISV32-100×*22914580160φ100φ32φ43φl1φ7878138ISV40-160×*φ40φ49149ISV50-250×*25990180φ120φ50φ61φ10296156ISV65-400×*284170105200φ140φ65φ77φ14φ1301221802014ISV80-630×*φ80φ90ISV90-800×*352240135260φ180φ90φ103φ18φ1661562302215ISV100-1000×*φ100φ115 Filter Element Part NumbersISV20-40X80ISV20-40X100ISV20-40X180ISV25-63X80ISV25-63X100ISV25-63X180ISV32-40X80ISV32-40X100ISV32-40X180ISV40-160X80ISV40-160X100ISV40-160X180ISV50-250X80ISV50-250X100ISV50-250X180ISV65-400X80ISV65-400X100ISV65-400X180ISV80-630X80ISV80-630X100ISV80-630X180ISV90-800X80ISV90-800X100ISV90-800X180ISV100-1000X80ISV100-1000X100ISV100-1000X180 Filter elements are tested according to the following ISO standards:ISO 2941 Verification of collapse/burst resistanceISO 2942 Verification of fabrication integrityISO 2943 Verification of material compatibility with fluidsISO 3723 Method for end load testISO 3724 Verification of flow fatigue characteristicsISO 3968 Evaluation of pressure drop versus flow characteristicsISO 16889 Multi-pass method for evaluating filtration performance Packing & ShippingPlastic bag inside,carton box outside, or according customer special requirement.Pallet or wooden box or according customer special requirement. Our ServiceHydraulic FiltersArgo, Boll, Bosch Rexroth, CJC, Donaldson, Eaton (Internormen), Filtrec, Gardner Denver, Hydac, Hy-pro, Hifi, Hilco, Indufil, Mahle, Mp Filtri, OMT, Pall, Parker, Stauff, SF, Schroeder,Taisei Kogyo, UFI, Vickers... Compressor Air Filters & Oil Filters & SeparatorsAtlas Copco, Aerzen, ABAC, Boge, Bolaite, Compair, Ceccato, Elgi, Fusheng, Gardner Denver, Hifi, Hitachi, Ingersoll Rand, Kobelco,  Kaeser, Liutech, Mann, Quincy, Sullair, Samsung, Sotras... Compressed Precision Inline FiltersAtlas Copco, AFE, ABAC, ATS, Airflux, Beko, Boge, BEA, Ceccato, Compair, CTA, CKD, Deltech, Domnick Hunter, Donaldson (Ultrafilter), Friulair, Fusheng, FST, Gardner Denver, Hifi, Hankison, Hiross, Ingersoll Rand, Kaeser, Knocks, Kellin, KSI, Liutech,  Mikropor, MTA, Nano, Numatics, OMI, Omega, Orion, Parker, Risheng, Sotras, SMC, Sege, Shanli, Sullair, Walker, Wikerson, Zander... Vacuum Pump FiltersBusch, Leybold, Becker, Rietschle Suction Strainers, Coalescer Filters, RRR Filters, Leemin Filters, Natural gas filter, Oil Filter Purfier...  FAQQ1. What is your product range?A: Our products cover replacement hydraulic filters, compressor air filters, oil filters, separators, compressed air filters, vacuum pump exhaust filters. Q2. Is customized filter or OEM available?A: Yes, just offer your required sepcifications and drawings. Q3. Can you produce according to the samples?A: Yes, we can produce by your samples or technical drawings. Q4. What's your terms of packing?A: Generally,we pack our goods in neutral boxes,outside brown carton cases. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.Q5. What's the terms of payment?A: T/T 30% as deposit, and 70% before delivery.We'll show you the photos of the products and packages before you pay the balancing.Q6. What's your terms of delivery?A: (1) EXW (2) FOB (3)CFR (4)CIF. Q7. How about your delivery time?A: Generally, under MOQ quantity take 5-7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order. Q8. What's your sample policy?A: We can supply the sample if we have stock, but the customers have to pay the sample cost and the courier cost at first, and we will refund sample cost in your next order.   Contact: AlanXinxiang Xinzheng Filter Equipment Co., LtdAdd: D5, 4th Floor, Venture Building, No. 1 Park, High-tech Zone, Xinxiang City, Henan Province, China.Phone: 0086-15083125759Tel: 0086-373-5011868Email: alan@xzfilters.comQQ: 2572060047Whatsapp: 86-15083125759Wechat: 86-15083125759
