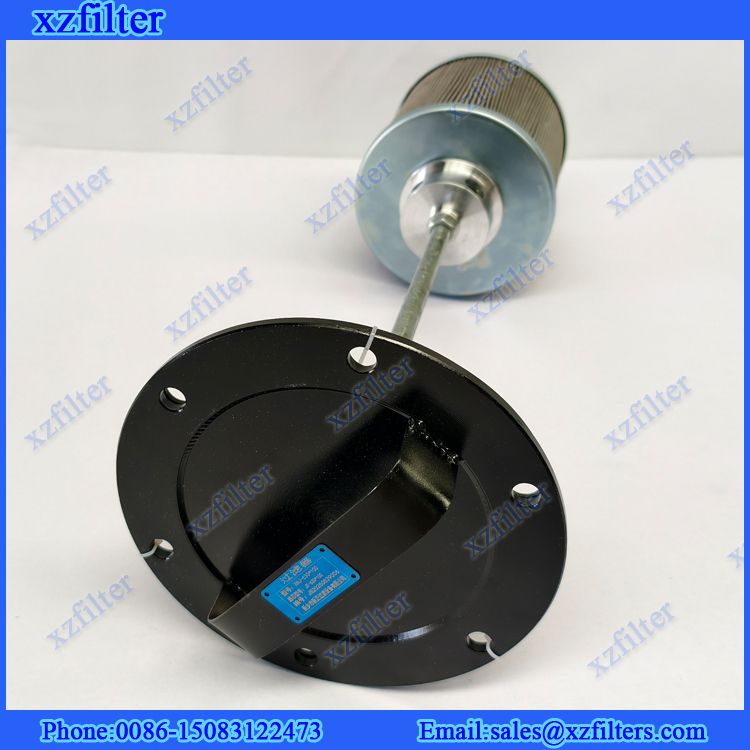

XNJ TANK MOUNTED SUCTION FILTER SERIES XNJ-100X80 XNJ-100X100 XNJ-100X180 INTRODUCTIONThe XNJ series filters can be installed on the top of the tank and the element is immersed in the oil,so it is easy for installation. During maintenance, you only need to turn off the screws of the connecting flange. and pull-out the connecting flange, the element can be changed or cleaned. A vacuum indicator in the filter gives signals when the pressure drop across the element reaches -0.018MPa showing that the filter element should be cleaned or changed. If no maintenance is done, as the pressure drop rises to 0.02MPa, the by-pass valve in this filter will open allowing oil flowing into pump directly, so when you select this series suction filter, a vacuum indicator should be necessary for the element clogged by contaminants,you can clean or change it immediately. Technical DataModelFlow rateFiltr.DiaPressure loss(MPa)IndicatorBy-pass settingWeightModel of element(L/min)(μm)(mm)Initial(V)(A)(MPa)(Kg)XNJ-25X*-C/Y258020≤0.007-0.020.7JX-25X*XNJ-40X*-C/Y401000.8JX-40X*XNJ-63X*-C/Y63180321.2JX-63X*XNJ-100X*-C/Y100122.51.4JX-100X*XNJ-160X*-C/Y160502421.9JX-160X*XNJ-250X*-C/Y250361.52.1JX-250X*XNJ-400X*-C/Y400802200.252.9JX-400X*XNJ-630X*-C/Y6304.5JX-630X*XNJ-800X*-C/Y800906.6JX-800X*XNJ-1000X*-C/Y10006.9JX-1000X* Note: * is filtration accuracy, if the medium is water-glycol, flow rate is 160L/min, filtration auuracy is 10μm, with CYB-I indicator, the model of this filter is XNL*BH-160X10Y, the model of this element is NLX*BH-160X10. Mounting Size ModelD1D2D3D5D6D7L1L2Min L3L5dXNJ-25X*-C/YΦ129Φ105Φ85Φ25Φ80Φ4687521020Φ9XNJ-40X*-C/Y100235XNJ-63X*-C/YΦ154Φ130Φ110Φ40Φ106Φ56110250XNJ-100X*-C/Y140280XNJ-160X*-C/YΦ200Φ170Φ145Φ55Φ141Φ761414032026Φ11XNJ-250X*-C/Y160340XNJ-400X*-C/YΦ242Φ210Φ185Φ85Φ180Φ10816034028Φ13.5XNJ-630X*-C/Y190370XNJ-800X*-C/YΦ262Φ230Φ205Φ100Φ200Φ127190395XNJ-1000X*-C/Y220425 Filter elements are tested according to the following ISO standards:ISO 2941 Verification of collapse/burst resistanceISO 2942 Verification of fabrication integrityISO 2943 Verification of material compatibility with fluidsISO 3723 Method for end load testISO 3724 Verification of flow fatigue characteristicsISO 3968 Evaluation of pressure drop versus flow characteristicsISO 16889 Multi-pass method for evaluating filtration performance Packing & ShippingPlastic bag inside,carton box outside, or according customer special requirement.Pallet or wooden box or according customer special requirement. Our ServiceHydraulic FiltersArgo, Boll, Bosch Rexroth, CJC, Donaldson, Eaton (Internormen), Filtrec, Gardner Denver, Hydac, Hy-pro, Hifi, Hilco, Indufil, Mahle, Mp Filtri, OMT, Pall, Parker, Stauff, SF, Schroeder,Taisei Kogyo, UFI, Vickers... Compressor Air Filters & Oil Filters & SeparatorsAtlas Copco, Aerzen, ABAC, Boge, Bolaite, Compair, Ceccato, Elgi, Fusheng, Gardner Denver, Hifi, Hitachi, Ingersoll Rand, Kobelco,  Kaeser, Liutech, Mann, Quincy, Sullair, Samsung, Sotras... Compressed Precision Inline FiltersAtlas Copco, AFE, ABAC, ATS, Airflux, Beko, Boge, BEA, Ceccato, Compair, CTA, CKD, Deltech, Domnick Hunter, Donaldson (Ultrafilter), Friulair, Fusheng, FST, Gardner Denver, Hifi, Hankison, Hiross, Ingersoll Rand, Kaeser, Knocks, Kellin, KSI, Liutech,  Mikropor, MTA, Nano, Numatics, OMI, Omega, Orion, Parker, Risheng, Sotras, SMC, Sege, Shanli, Sullair, Walker, Wikerson, Zander... Vacuum Pump FiltersBusch, Leybold, Becker, Rietschle Suction Strainers, Coalescer Filters, RRR Filters, Leemin Filters, Natural gas filter, Oil Filter Purfier...  FAQQ1. What is your product range?A: Our products cover replacement hydraulic filters, compressor air filters, oil filters, separators, compressed air filters, vacuum pump exhaust filters. Q2. Is customized filter or OEM available?A: Yes, just offer your required sepcifications and drawings. Q3. Can you produce according to the samples?A: Yes, we can produce by your samples or technical drawings. Q4. What's your terms of packing?A: Generally,we pack our goods in neutral boxes,outside brown carton cases. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.Q5. What's the terms of payment?A: T/T 30% as deposit, and 70% before delivery.We'll show you the photos of the products and packages before you pay the balancing.Q6. What's your terms of delivery?A: (1) EXW (2) FOB (3)CFR (4)CIF. Q7. How about your delivery time?A: Generally, under MOQ quantity take 5-7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order. Q8. What's your sample policy?A: We can supply the sample if we have stock, but the customers have to pay the sample cost and the courier cost at first, and we will refund sample cost in your next order.   Contact: AlanXinxiang Xinzheng Filter Equipment Co., LtdAdd: D5, 4th Floor, Venture Building, No. 1 Park, High-tech Zone, Xinxiang City, Henan Province, China.Phone: 0086-15083125759Tel: 0086-373-5011868Email: alan@xzfilters.comQQ: 2572060047Whatsapp: 86-15083125759Wechat: 86-15083125759
